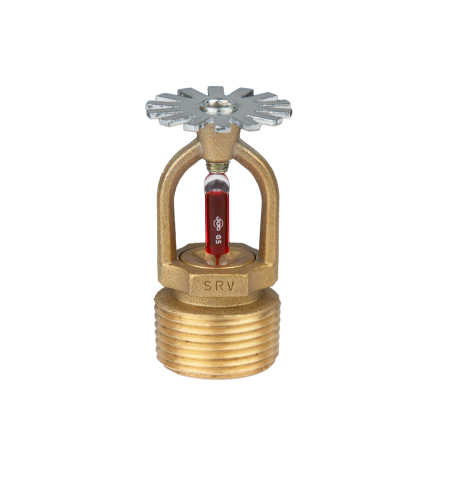

ELO PENDENT SPRINKLER SRV-4237 FAST REACTION, K 11.2 (K 160)

ELO PENDENT SPRINKLER SRV-4237 FAST REACTION, K 11.2 (K 160)

1.045,53 TL
Installments starting from 109,51 TL!
Category
Fire Installation , Sprinkler
Brand
Mirsa
Stock Code
SRV-4237
Warranty Period
1 Month
Price
871,28 TL + VAT
Options
PRINCE
Dimensions
3/4''
DEGREE
57°C 68°C 79°C 93°C 141°C
Get Offer
*
*
*
Product Information
Product Information

3 / 4 " NPT ELO PENDENT SPRINKLER - Fast Response - TSE CERTIFIED PRODUCT

Upright Sprinklers are designed for use in projects classified as low and medium hazard.

Values such as K Factor, Reactivity and Temperature are determined by the project type, design and calculations.

On the Designed Pipe Network  Deflactor Part  Up Future  It is installed as follows and when the sprinkler is activated, water flow begins in a downward conical direction.

K Factor / K Factor

K11 , 2 (160 )

External  The size of / Thread You

3 / 4 " NPT

Reaction / Response

Fast Reaction / Standard Response

Heat / Temperature

57 ° C , 68 ° C , 79 ° C , 93 ° C ,  141 ° C

Surface / Finishes

Prince c / Brass

Pine I Bulb

3mm , UL Approved / UL Listed

Body / Body

Brass / Brass MS58

Deflactor I Deflector

Stainless Steel / Stainless Steel

Pine Home / Bulb Seat

Brass / Brass MS58

Gasket I Gasket

Teflon / PTFE


Testing and Design Standards
Minimum Working Pressure - 0.5 bar (7 psi)
Factory Test Pressure - 34.5 bar (560 psi)
Areas of Use:
Parking
Workshop
Workshop
Waste Collection Center
Shopping center
Other
Warranty Period (Months) 24
Overseas Sales None
Stock Code HBCV00004I9O0B
