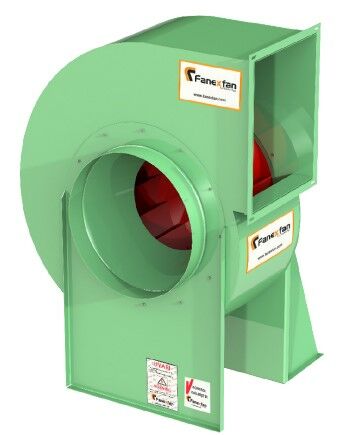

FGS Backward Curved Low Pressure Conical Snail Fan
%10DISCOUNT
27.092,58 TL
20.319,43 TL + KDV
Installments starting from 2.553,95 TL!
Stock Code
FGS-KSF
Price
22.577,15 TL + VAT
OUR PRODUCTS:
They are standard low pressure conical sparsely winged products with a capacity between 2000 m³/h and 50,000 m³/h, from 350 Pa to 1500 Pa, with direct coupled motor, backward curved impeller, easy to install and with the ability to change direction on the same body. All measurements are made in accordance with TSE standards. Production is made in larger capacities upon request. It can also be operated with a frequency inverter (speed controller).
They are standard low pressure conical sparsely winged products with a capacity between 2000 m³/h and 50,000 m³/h, from 350 Pa to 1500 Pa, with direct coupled motor, backward curved impeller, easy to install and with the ability to change direction on the same body. All measurements are made in accordance with TSE standards. Production is made in larger capacities upon request. It can also be operated with a frequency inverter (speed controller).
MATERIAL
Fans manufactured from DKP or black sheet metal between 2 mm and 10 mm are cut on CNC laser sheet metal processing machines and welded together. They are painted with electrostatic powder paint. Propeller balances are taken on electronic balancing machines. They are sent to the quality control department before shipment.

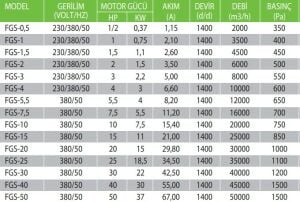

MOTOR POWER=min. 0.37 kW max. 37 kW For detailed information;
PHONE: +90 (212) 879 09 02
PHONE: +90 (212) 879 09 02
WHATSAPP: +90 850 433 81 27
Shipping is the responsibility of the buyer.
