HTRA

DIRECTLY DRIVEN MOTOR, SINGLE INLET RADIAL FAN, SPARKLING WING CELL ASPIRATOR

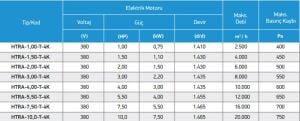

HTRA single inlet centrifugal cell fans are produced in different sizes with flow rates between 2,500 m³/h and 20,000 m³/h. Cell panels are insulated with 20 mm thick and 70 kg/m³ density rock wool. It is the most suitable solution for ventilation of spaces that may contain oily air such as kitchens, hoods, etc.

MATERIAL
Body; Made of galvanized sheet metal. Insulated with 20 mm thick rock wool. Manufactured in aluminum cage structure. Radial impeller, backward curved wing structure is made of black sheet metal.

SPEED CONTROL
They can be provided with a frequency inverter.

AREAS OF USE
Kitchens, dining halls, factories, hospitals, restaurants, cafeterias, etc.

NOTE :

• YOUR ORDER WILL BE DELIVERED TO THE ADDRESS YOU PROVIDE WITHIN 15 DAYS BY CARGO OR SIMILAR WAREHOUSES, WITH CASH ON COVER.
• YOU CAN SUBMIT YOUR REQUESTS FOR ALL HVAC PRODUCTS AND GET THEM EASILY.
• WITH BELT AND PULLEY DRIVE MECHANISM, FORWARD INCLINED AND THICK-BLADED DOUBLE INLET AND RADIAL FAN.
• AFTER ORDERING, MAKE SURE TO PROVIDE FAN SUCTION AND EXHAUST DIRECTION INFORMATION BY WHATSAPP OR CONTACTING US.
• YOU CAN GET SUPPORT FOR FAN SELECTION BY CONTACTING US.

✓ Domestic Production
✓ Pre-sales and after-sales technical information
✓ The right choice with years of experience
