HTRF Seyrek Kanatlı Hücreli Aspiratör

HTRF Seyrek Kanatlı Hücreli Aspiratör

%10DISCOUNT
31.800,00 TL
23.850,00 TL + KDV
Installments starting from 2.997,71 TL!
Brand
Stock Code
ACT-HA-SK-HTRF-067
Price
26.500,00 TL + VAT
MODEL

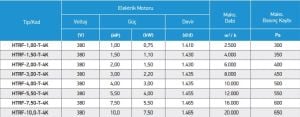

HTRF-1.00-T-4K HTRF-1.50-T-4K HTRF-10.0-T-4K HTRF-2.00-T-4K HTRF-3.00-T-4K HTRF-4.00-T-4K HTRF-5.50-T-4K HTRF-7.50-T-4K
*
*
*

HTRF

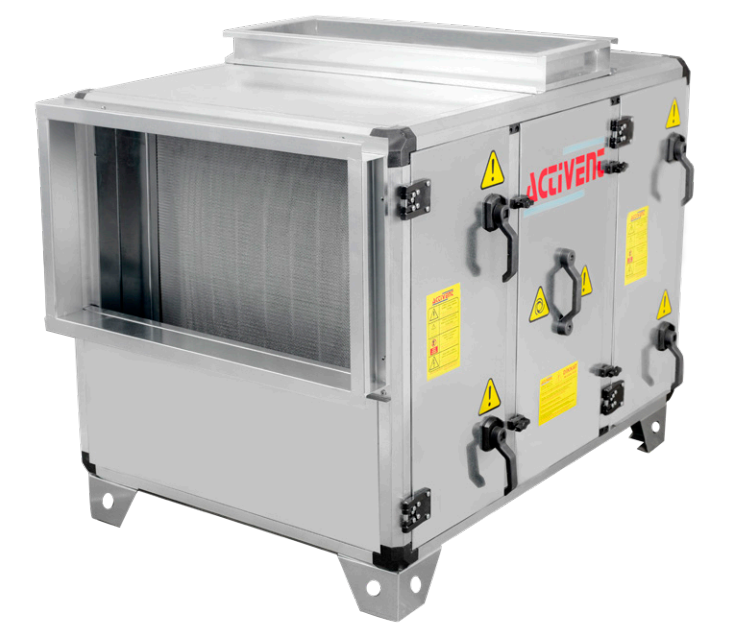

CASSETTE TYPE METAL FILTER, DIRECT, COUPLED MOTOR, SPARKLING BLADE, SINGLE INLET RADIAL FAN CELL ASPIRATOR
HTRF single inlet centrifugal cell fans are produced in different sizes with flow rates between 2,500 m³/h and 20,000 m³/h. Cell panels are insulated with rock wool with a thickness of 20 mm and a density of 70 kg/m³.
It is the most suitable solution for ventilation of spaces that may contain oily air such as kitchens, hoods, etc. It has a G2 metal cassette filter inside.


MATERIAL
Body; Made of galvanized sheet metal. 20 mm thick rock wool insulation. Manufactured in aluminum cage structure. Radial impeller, backward curved wing structure is made of black sheet metal

SPEED CONTROL
They can be provided with a frequency inverter.

AREAS OF USE
Workplaces, offices, factories, hospitals, restaurants, meeting rooms, supermarkets, shopping malls Kitchens, dining halls, factories, hospitals, restaurants, cafeterias, etc.


NOTE :

  • YOUR ORDER WILL BE DELIVERED TO THE ADDRESS YOU PROVIDE WITHIN 15 DAYS BY CARGO OR SIMILAR WAREHOUSES, WITH CASH ON COVER.
  • YOU CAN SUBMIT YOUR REQUESTS FOR ALL HVAC PRODUCTS AND GET THEM EASILY.
  • WITH BELT AND PULLEY DRIVE MECHANISM, FORWARD INCLINED AND THICK-BLADED DOUBLE INLET AND RADIAL FAN.
  • AFTER ORDERING, MAKE SURE TO PROVIDE FAN SUCTION AND EXHAUST DIRECTION INFORMATION BY WHATSAPP OR CONTACTING US.
  • YOU CAN GET SUPPORT FOR FAN SELECTION BY CONTACTING US.


Domestic Production
Pre-sales and after-sales technical information
The right choice with years of experience


For detailed information;

PHONE: +90 (212) 879 09 02
WHATSAPP: +90 850 433 81 27
Shipping is the responsibility of the buyer.

Be the first to comment on this product!
You can use the suggestion form to submit feedback on the product's price, image, description, or any other insufficient areas.
Thank you for your feedback and suggestions.
HTRF Seyrek Kanatlı Hücreli Aspiratör HTRA DİREKT AKUPLE MOTORLU, TEK EMİŞLİ RADYAL FANLI, SEYREK KANATLI HÜCRELİ ASPİRATÖR HTRA tek emişli santrifüj hücreli fanlar 2.500m³/h ile 20.000 m³/h debileri arasında değişik boyutlarda üretilmektedir. Hücre panelleri 20 mm kalınlıkta ve 70 kg/m³ yoğunlukta kaya yünü izolelidir. Mutfak, davlumbaz vb. yağlı hava içerebilecek mahallerin havalandırılması için en uygun çözümdür. MALZEME Gövdesi; Galvaniz sacdan üretilmiştir. 20 mm kalınlığında kaya yünü izolelidir. Alüminyum kafes yapısında imal edilirler. Radyal pervane, geriye eğimli kanat yapısında siyah sacdan imal edilmiştir. HIZ KONTROLÜ Frekans invertörü ile sağlanabilirler. KULLANIM ALANLARI Mutfaklar, yemekhaneler, fabrikalar, hastaneler, restoranlar, kafeteryalar vb. ACT-HA-SK-HTRF-067
