RCAD

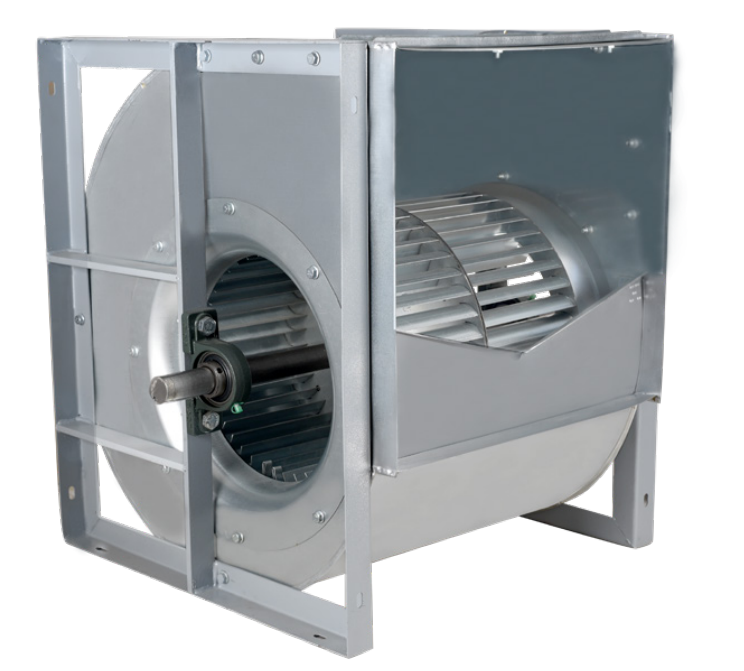

BACKWARD CURVED AND SPARKLING BLADE, DOUBLE INLET, RADIAL FANS WITH CELL INTERNAL FANS

RCRD series fans are double inlet backward curved sparse blade radial fans. High efficiency overload can be used for suction and discharge applications in commercial and industrial HVAC systems with flow rates between 4,500 m³ / h and 47,000 m³ / h. They provide maximum efficiency with low energy.

MATERIAL
Body; Made of galvanized sheet metal. Radial Fan, forward curved blade structure, made of galvanized sheet metal. Shaft; Made of ST-45 steel. Bearings; Made of self-renewing bearings, bearing protectors are made of rubber.

SPEED CONTROL
It is obtained with a belt-pulley system.

AREAS OF USE
Cellular aspirators are preferred in places requiring silence and comfort such as central air conditioning units, workplaces, offices, cafeterias, restaurants, meeting rooms, supermarkets, etc.

NOTE :

• YOUR ORDER WILL BE DELIVERED TO THE ADDRESS YOU PROVIDE WITHIN 15 DAYS BY CARGO OR SIMILAR WAREHOUSES, WITH CASH ON COVER.
• YOU CAN SUBMIT YOUR REQUESTS FOR ALL HVAC PRODUCTS AND GET THEM EASILY.
• WITH BELT AND PULLEY DRIVE MECHANISM, FORWARD INCLINED AND THICK-BLADED DOUBLE INLET AND RADIAL FAN.
• AFTER ORDERING, MAKE SURE TO PROVIDE FAN SUCTION AND EXHAUST DIRECTION INFORMATION BY WHATSAPP OR CONTACTING US.
• YOU CAN MAKE MORE DETAILED AND ACCURATE PURCHASES BY CONTACTING US VIA WHATSAPP.

✓ Domestic Production
✓ Pre-sales and after-sales technical information
✓ The right choice with years of experience
