RCAT

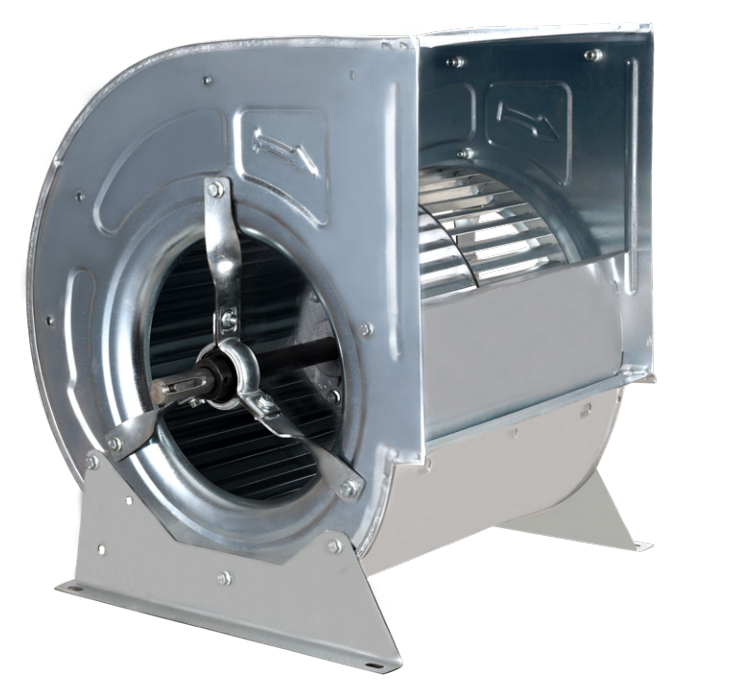

FORWARD CURVED AND THICK-BLADED, DOUBLE INLET, RADIAL FANS WITH INNER CELL FANS
RCAT series fans are double inlet forward curved dense bladed radial fans. They are produced as standard in different sizes. They can be used for suction and discharge applications in commercial and industrial HVAC systems between 3,000 m³/h and 22,000 m³/h flow rates. They provide maximum efficiency with low energy.

MATERIAL
Body; Made of galvanized sheet metal. Radial Fan, forward curved wing structure, made of galvanized sheet metal. Shaft; Made of ST-45 steel. Bearings; Made of self-renewing bearings, bearing protectors are made of rubber.

SPEED CONTROL
It is obtained with a belt-pulley system.

AREAS OF USE
Cellular aspirators are preferred in places requiring silence and comfort such as central air conditioning units, workplaces, offices, cafeterias, restaurants, meeting rooms, supermarkets, etc.

NOTE :

• YOUR ORDER WILL BE DELIVERED TO THE ADDRESS YOU PROVIDE WITHIN 15 DAYS BY CARGO OR SIMILAR WAREHOUSES, WITH CASH ON COVER.
• YOU CAN SUBMIT YOUR REQUESTS FOR ALL HVAC PRODUCTS AND GET THEM EASILY.
• WITH BELT AND PULLEY DRIVE MECHANISM, FORWARD INCLINED AND THICK-BLADED DOUBLE INLET AND RADIAL FAN.
• AFTER ORDERING, MAKE SURE TO PROVIDE FAN SUCTION AND EXHAUST DIRECTION INFORMATION BY WHATSAPP OR CONTACTING US.
• YOU CAN GET SUPPORT FOR FAN SELECTION BY CONTACTING US.

✓ Domestic Production
✓ Pre-sales and after-sales technical information
✓ The right choice with years of experience
