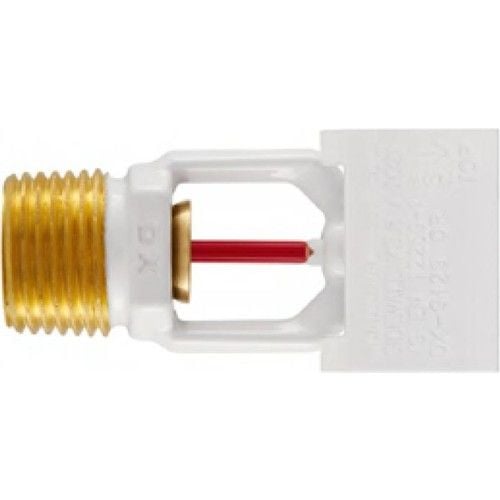

SIDEWALL SPRINKLER SRV-1129 STANDART TEPKİMELİ, K 5.6 (K 80)

Sidewall Sprinkler - Standard Reaction
SRV-1129

Sidewall Fire Sprinkler Standard Reaction, Tse Certified Product

1/2'' Sidewall The sprinkler is specially designed for use in projects with low risk levels. The values such as the K factor, reaction time and temperature of the sprinkler are determined by the project features, design parameters and calculations. The throw distances are specified in the catalog values. The deflactor part mounted on the designed pipe system is placed on the wall parallel to the ground. When the sprinkler is activated, the water flow starts by being directed conically forward and downward.

Features

Pine                5mm, UL Approved

Surface             Chrome, Brass, White

Heat           57°C, 68°C, 79°C, 93°C, 141°C

Reaction          Standard Reaction

External Dimensions      1/2 NPT

K Factor         K5,6(80)

Material Properties

Gasket              EPDM

Glass Nest    Rice

Deflactor        Stainless steel

Body             Rice

Areas of Use

Parking

Workshop / Factory

Waste Collection Center

Shopping center

Testing and Design Standards

Minimum Working Pressure - 0.5 bar (7 psi)

Factory Test Pressure - 34.5 bar (560 psi)

TSE Standard Declared Pressure - 12 bar (175 psi)

Other

Warranty Period (Months)    24

Overseas Sales            None

Stock Code                  SRV-1129
