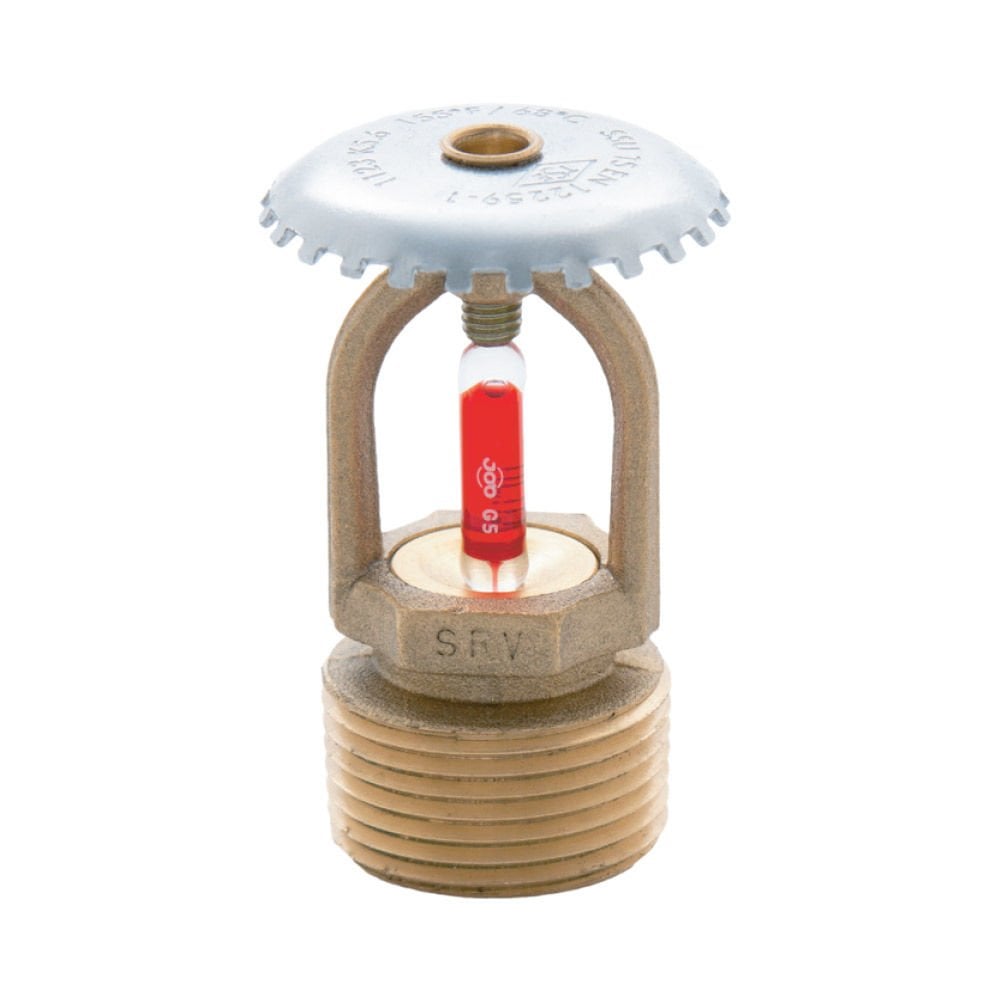

UPRIGHT SPRINKLER SRV-1133 STANDART TEPKİMELİ, K 8.0 (K 115)

Upright Sprinkler - Standard Response
SRV-1133

Upright Fire Sprinkler Standard Reaction, Tse Certified Product

3/4" NPT Upright Sprinkler is specially designed for use in projects with low and medium hazard levels. It is determined based on factors such as K factor, Reaction Time and Temperature according to the values determined as a result of the project type, design features and calculations made. When installed on the designed pipe network, the deflector part of the sprinkler is directed upwards and when the sprinkler is activated, the water flow starts downwards in a conical manner.

Features

Glass 5mm, UL Approved

Surface Chrome, Brass

Temperature 57°C, 68°C, 79°C, 93°C, 141°C

Reaction Standard Reaction

Outside Dimensions 3/4″ NPT

K Factor K8.0(115)

Material Properties

Gasket               EPDM

Pine Brass Nest

Deflactor         Stainless steel

Body              Rice

Areas of Use

Parking

Workshop / Factory

Waste Collection Center

Shopping center

Testing and Design Standards

Minimum Working Pressure - 0.5 bar (7 psi)

Factory Test Pressure - 34.5 bar (560 psi)

TSE Standard Declared Pressure - 12 bar (175 psi)

Other

Warranty Period (Months) 24

No International Sales

Stock Code HBCV00004I9O0B
