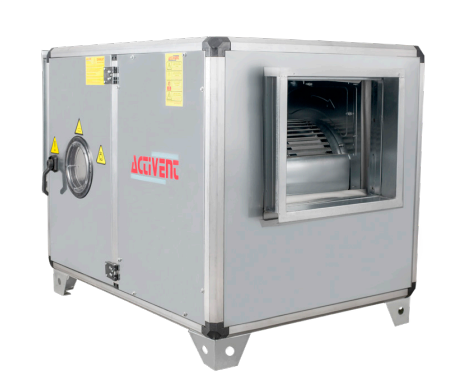

HCAT Belt-Pulley Mechanism Forward Inclined and Dense Wing
HCAT
BELT-PULLEY, DRIVE MECHANISM, FORWARD INCLINED AND FREQUENTLY BLADED, DOUBLE INLET RADIAL FAN CELLULAR ASPIRATOR
HCAT double inlet centrifugal cell fans are produced in different sizes with flow rates between 1,000 m³/h and 20,000 m³/h. Cell panels are insulated with 20 mm thick and 70 kg/m³ density rock wool. They have vibration-free operation and provide maximum efficiency with low energy.
MATERIAL
Body; Made of galvanized sheet metal. Insulated with 20 mm thick rock wool. Manufactured in aluminum cage structure. Radial fan, forward curved wing structure, made of galvanized sheet metal.
SPEED CONTROL
It is obtained with a belt and pulley system.
AREAS OF USE
Workplaces, offices, factories, hospitals, restaurants, meeting rooms, supermarkets, shopping malls, etc.
NOTE :
- YOUR ORDER WILL BE DELIVERED TO THE ADDRESS YOU PROVIDE WITHIN 15 DAYS BY CARGO OR SIMILAR WAREHOUSES, WITH CASH ON COVER.
- YOU CAN SUBMIT YOUR REQUESTS FOR ALL HVAC PRODUCTS AND GET THEM EASILY.
- WITH BELT AND PULLEY DRIVE MECHANISM, FORWARD INCLINED AND THICK-BLADED DOUBLE INLET AND RADIAL FAN.
✓ Domestic Production
✓ Pre-sales and after-sales technical information
✓ The right choice with years of experience
- VAT IS INCLUDED IN THE PRICES.
- PROCEED BY SELECTING THE PIPE DIAMETER YOU WANT TO USE.
- ADDRESS DELIVERY AND COUNTERPAYMENT IS AVAILABLE ALL OVER Türkiye.
- YOU CAN MAKE MORE DETAILED AND ACCURATE PURCHASES BY CONTACTING US VIA WHATSAPP.
